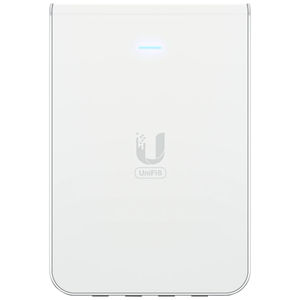

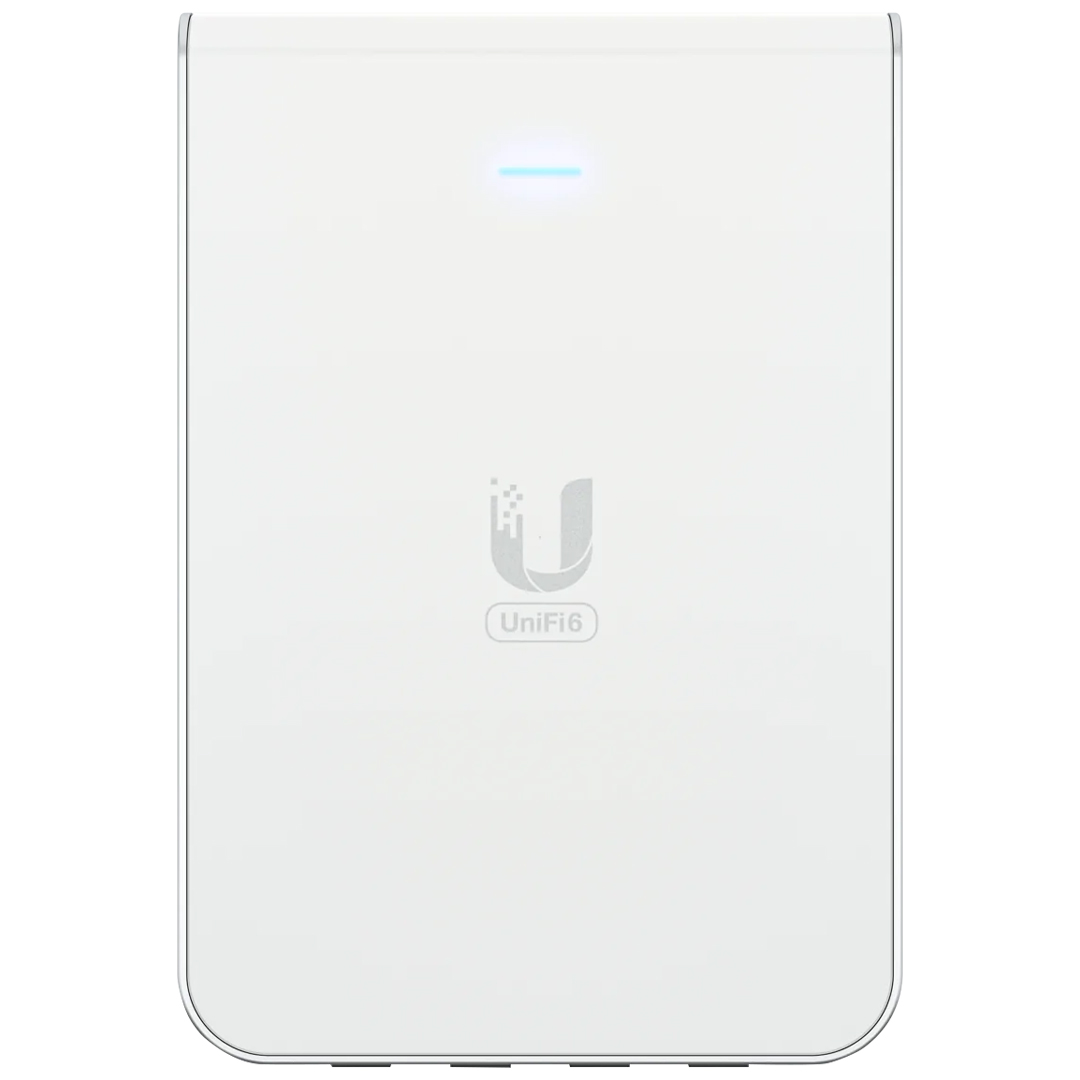

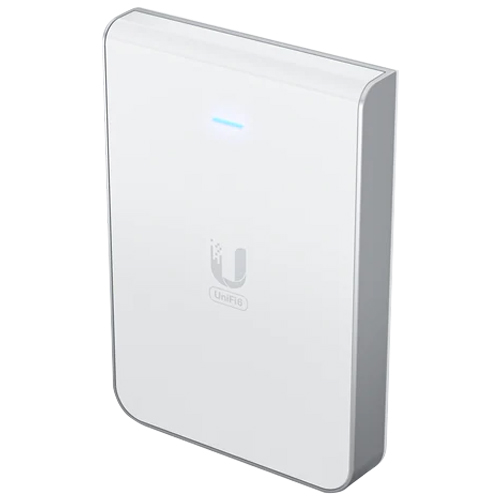

The Ubiquiti UniFi 6 In Wall Access Point with PoE is a wall-mounted access point that features a built-in PoE switch, supports Wi-Fi 6 and a 5.3Gbps aggregate throughput rate.
VIDEO
Features
UniFi6 In-Wall
Wall-Mounted WiFi 6 Access Point with a Built-In PoE Switch
WiFi 6 support (2.4/5 GHz bands)
5.3 Gbps aggregate throughput rate

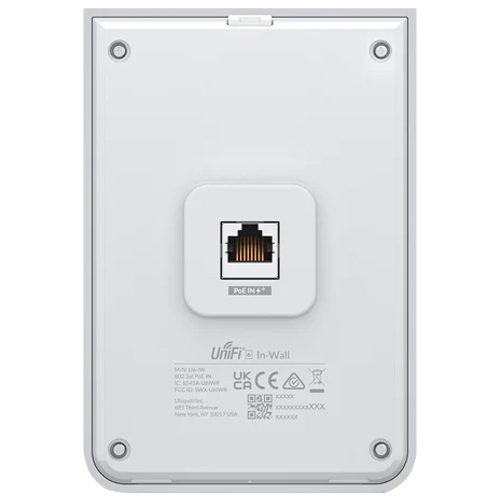

(1) GbE RJ45 port (PoE In)

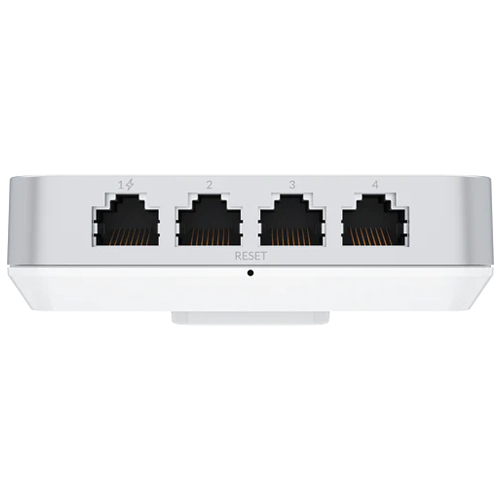

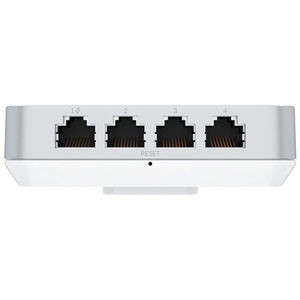

(4) GbE RJ45 ports, including one that supports PoE output*
*PoE+ input required.
Managed with UniFi Network application: Version 6.4.52 and later
Adopt the U6-IW in Minutes with Your UniFi Network Application
Centrally manage multiple networks from an intuitive interface
Enjoy real-time device insights and deep configuration options
Upgrade device firmware remotely
Manage network users and guests with ease
Personalize the design, architecture, and privacy of guest hotspots
Set up devices quickly and manage them on the go with a powerful mobile app
Specifications
Mechanical
Model Number
U6-IW
Dimensions
139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight
460 g (1.01 lb)
Enclosure Materials
Plastic, Aluminium

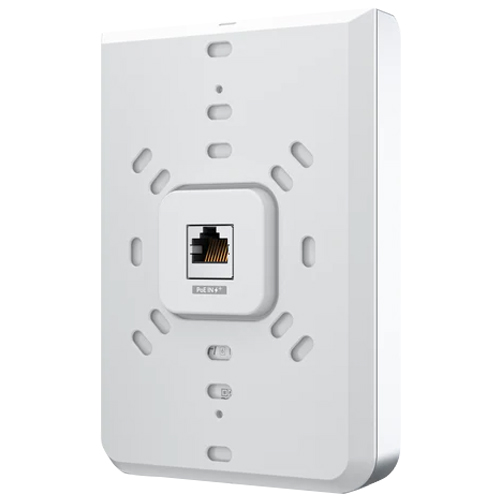

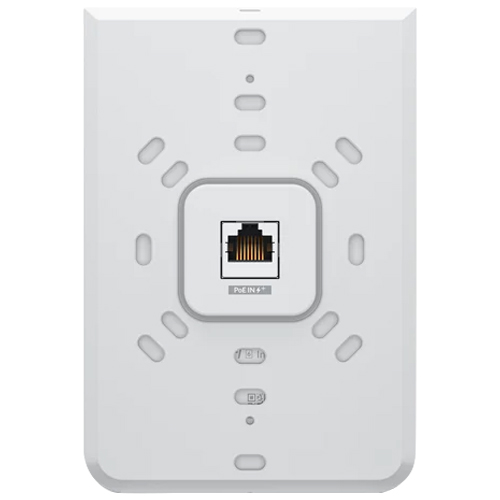

Mount Material
Aluminium
Hardware
Management Interfaces
Ethernet
Networking Interfaces
(1) Data-In: 1GbE RJ45 Port
PoE Interfaces
(1) PoE In (PoE Output Not Used)
Button
Factory Reset
LED
White / Blue
Power Method
PoE
Power Supply
UniFi PoE Switch
Max. Power Consumption
Excluding PoE Output: 13.5 W
Max PoE Wattage per Port by PSE
15.4W*
Voltage Range PoE Mode
44 to 57 V DC
Max. TX Power
2.4 GHz / 22 dBm
MIMO
2.4 GHz / 2 x 2 (UL MU-MIMO)
Throughput Rate
2.4 GHz / 573.5 Mbps
Antenna Gain
2.4 GHz / 5 dBi
Operating Temperature
-30 to 60° C (-22 to 140° F)
Operating Humidity
5 - 95 % Non-Condensing
Certifications
CE, FCC, IC
Software
WiFi Standards
802.11a / b / g
Wireless Security
WPA-PSK, WPA-Enterprise (WPA / WPA2 / WPA3)
BSSID
8 Per Radio
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
Concurrent Clients
300+
Zero-Wait DFS
Yes
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20 / 40)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1 / 2 / 3 / 4, VHT 20 / 40 / 80 / 160)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1 / 2 / 3 / 4, HE 20 / 40 / 80 / 160)
Backed by a 1 year Ubiquiti warranty.
