ADATA XPG ASX8600 Pro M.2 NVME SSD 1TB
ASX8600PRO-1T-CS | ADATAThis product has been discontinued
Features
Features of the ADATA XPG ASX8600 Pro M.2 NVME SSD 1TB at a glance
- Ultra-fast PCIe Gen3 x4 interface
- NVMe 1.3 support
- R/W speed up to 3500/3000MB/s
- 3D NAND Flash for higher capacities and durability
- Advanced LDPC ECC technology
- SLC caching and DRAM cache buffer
- E2E Data Protection and RAID Engine
- M.2 2280 : Supports latest Intel and AMD platforms
- Backed by a 5-year warranty
- The heatsink could be installed by yourself
Stunning Speed
Featuring PCIe Gen3 x4, 3D NAND Flash, and NVMe 1.3 support, the SX8600 PRO sports speeds of up to 3500/3000MB/s read and write to give DIY enthusiasts and graphics professionals the performance they need. It also supports the latest Intel and AMD platforms.
Cool in the Heat of Battle
Sporting a robust high-temperature resistant aluminium heat sink, the SX8600 PRO gets rid of heat effectively. It is able to reduce temperatures by up to 10 percent.
Everything Accelerated

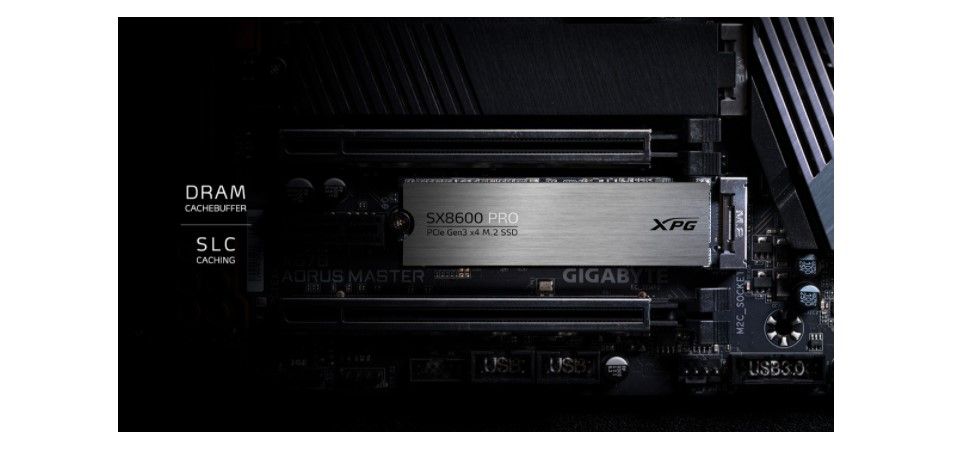

With SLC caching and a DRAM cache buffer, the SX8600 PRO accelerates your PC’s performance and 4K random read/write speeds to shorten system response time. There’s no more waiting around. Quickly access files and load games in a flash!
Long-Lasting and Durable
3D NAND Flash packs in up to 1TB of capacity and a wide range of data protection and correction technologies to increase total TBW (Tera Bytes Written).
Protected and Accurate
The SX8600 PRO supports LDPC (Low-Density Parity-Check) error correcting code technology to detect and fix a wider range of data errors. Meanwhile, E2E (End-to-End) Data Protection and RAID Engine ensure security, integrity, and durability.
5-Year Warranty
For peace of mind, the SX8600 PRO comes backed by a 5-year warranty.
Specifications
| Model Number | ASX8600PRO-1T-CS |
| Capacity | 1TB |
| Form Factor | M.2 2280 |
| NAND Flash | 3D NAND |
| Controller | SM2262EN |
| Dimensions (L x W x H) | 80 x 22 x 4.38 mm / 3.15 x 0.87 x 0.17 inch (with heatsink) 80 x 22 x 3.38 mm / 3.15 x 0.87 x 0.13 inch (without heatsink) |
| Weight | 11 g / 0.38 oz (with heatsink) 8 g / 0.28 oz (without heatsink) |
| Interface | PCIe Gen3 x4 |
| Sequential Read (Max) | Up to 3,500MB/s* |
| Sequential Write (Max) | Up to 3,000MB/s* |
| 4KB Random Read IOPS(Max) | Up to 390K* |
| 4KB Random Write IOPS(Max) | Up to 380K* |
| Operating temperature | 0°C - 70°C |
| Storage temperature | -40°C-85°C |
| Terabytes Written (TBW)(Max Capacity*) | 1,280 TB** |
| Shock resistance | 1500 G / 0.5 ms |
| MTBF | 2,000,000 hours |
| Warranty | 5-year limited warranty*** |
| Note | * Performance may vary based on SSD capacity, host hardware and software, operating system, and other system variables. ** The value is the minimum amount of terabyte written that could be reached. *** The SSD is based on the TBW or Warranty period. Visit www.adata.com/us/support/xpg?tab=warranty&warranty=warrantyService for more details. |
