Gigabyte Titan Ridge Dual Thunderbolt 3 PCI-E Card Rev 2.0

GC-TITAN-RIDGE-2.0
$125
In stock
Buy now, pay later!
The Gigabyte Titan Ridge Dual Thunderbolt 3 PCI-E Card offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards with the new and faster Thunderbolt 3 connectivity without having to upgrade to a whole new system.

Features

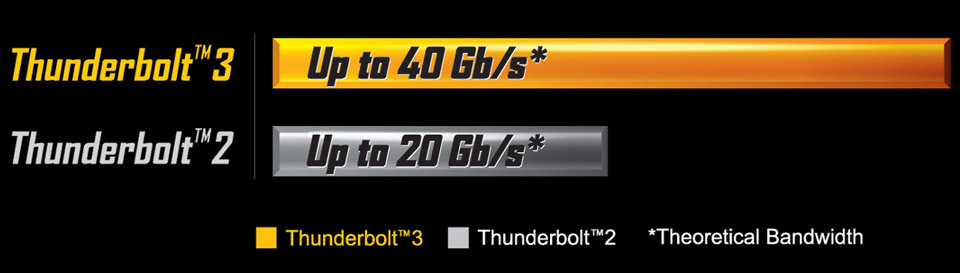

Dual Thunderbolt 3 - the fastest 40GB/s single-wire connection

Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch.


Daisy-chain multiple devices

Support for DisplayPort 1.4 makes Thunderbolt™ 3 a must have for any enthusiast. GIGABYTE GC-TITAN RIDGE support two displays in 4K resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.


Certified motherboards support

Support status may vary depending on motherboard specifications, and requires Windows 10 64-bit with RS3 or later.

Specifications


Ports 1 x DisplayPort
1 x Thunderbolt 3 Port/USB 3.2 Gen 2 Type-C
2 x Mini DisplayPort In
Accessories 2 x Mini DisplayPort Cable
1 x Thunderbolt Header cable (5-Pin)
1 x Thunderbolt Header Cable (3-Pin)
1 x USB 2.1/1.1 Header Cable
Warranty 1 Year

Certified motherboards support

Z490 series (Support by PCH PCIe x4 slot only) Z490 AORUS MASTER / WATERFORCE
Z490 AORUS ULTRA
Z490 AORUS PRO AX
Z490 AORUS PRO
Z490 AORUS ELITE AC
Z490 AORUS ELITE
Z490I AORUS ULTRA
Z490 VISION G
Z490 GAMING X AX
Z490 GAMING X
Z490M GAMING X
Z490 UD ACZ490 UD
Z490M
H470 series (Support by PCH PCIe x4 slot only) H470 AORUS PRO AX
H470 AORUS PRO AX
H470 HD3
H470M DS3H
Z390 series (Support by PCH PCIe x4 slot only) Z390 AORUS MASTER
Z390 AORUS ULTRA
Z390 AORUS PRO WIFI
Z390 AORUS PRO
Z390 AORUS ELITE
Z390 GAMING X
Z390 UD
Z390 M GAMING
Z390 M
Z390 series (Recommend to install on CPU PCIe x16 slot) Z390 GAMING SLI
H370 series (Support by BIOS F10 or after, PCH PCIe x4 slot only) H370 AORUS GAMING 3 WIFI
H370 AORUS GAMING 3
H370 HD3
B360 series (Support by BIOS F10 or after, PCH PCIe x4 slot only) B360 AORUS GAMING 3 WIFI
B360 AORUS GAMING 3
B360 HD3P
B360 HD3
B360M D3P
Z370 series (Support by BIOS F11 or after, PCH PCIe x4 slot only) Z370 AORUS GAMING 7
Z370 AORUS GAMING 7-OP
Z370 AORUS GAMING 5
Z370 AORUS ULTRA GAMING WIFI 2.0
Z370 AORUS ULTRA GAMING WIFI
Z370 AORUS ULTRA GAMING WIFI-OP
Z370 AORUS ULTRA GAMING 2.0-OP
Z370 AORUS ULTRA GAMING 2.0
Z370 AORUS ULTRA GAMING
Z370 AORUS GAMING 3
Z370 AORUS GAMING K3
Z370 AORUS GAMING WIFI
Z370 UD3H Z370XP SLI
X299X series (Support by PCH PCIe x8_2 slot only) X299X AORUS MASTER
X299 Workstation/Server series X299-WU8
Requires additional USB 3.0 19-pin female to USB 2.0 9-pin male cable for proper functioning (P/N: 12CR1-FUB001-01R)
AMD X570 series (Recommend to install on PCH PCIe x4 slot), (Recommend to update to latest BIOS version) X570 AORUS XTREME 1.1
X570 AORUS MASTER 1.1
X570 AORUS ULTRA 1.1
X570 AORUS PRO WIFI 1.1
X570 AORUS PRO 1.1
Backed by a 1 year Gigabyte warranty.
