Cougar MX330-X Case with 500W PSU

CGR-MX330-X-XTC500
$105
In stock
The Cougar MX330-X Case features a closed side panel, mesh front panel for optimal airflow, supports mini-ITX, micro-ATX and ATX motherboards, top dust filter, 1 x pre-installed rear fan, radiator support at the front (up to 240mm), top and rear (up to 120mm), supports a graphics card of up to 350mm in length, and includes at 500W power supply.

Features


Extreme Flexibility
MX330 has seven PCI slots, allowing you to install multiple 350mm graphics cards to give you all the graphic horsepower your games require. You also get the ability to install up to two 2.5" SSD and 3.5" HDDs (for a maximum of four storage devices) to satisfy your storage needs.

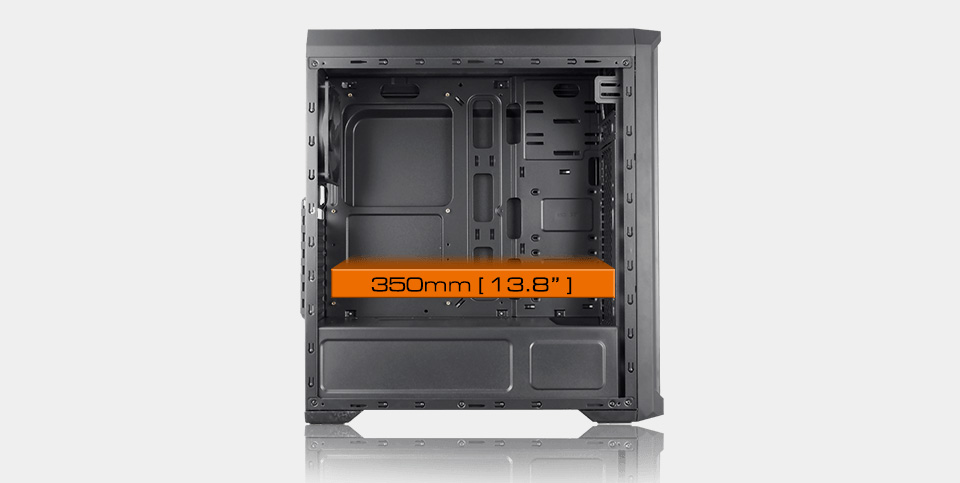

Supports full-sized graphics cards up to 350mm

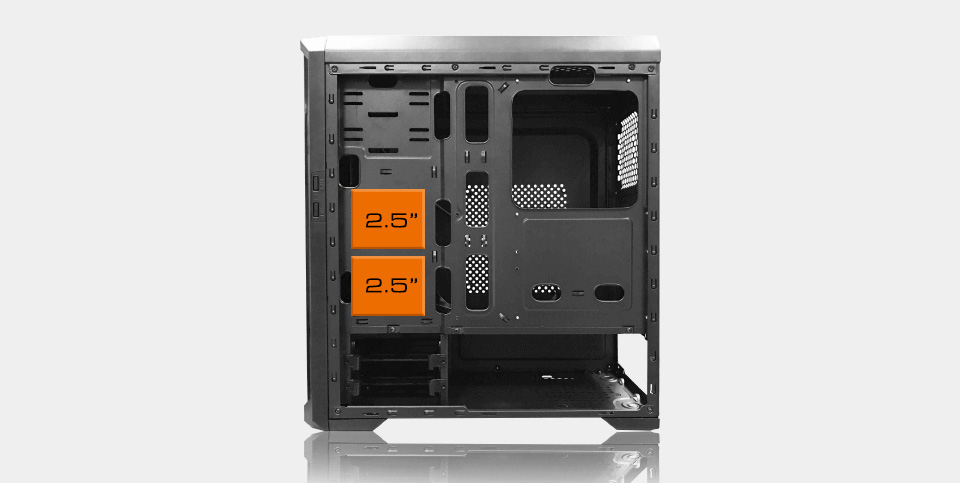

2.5” SSD x 2

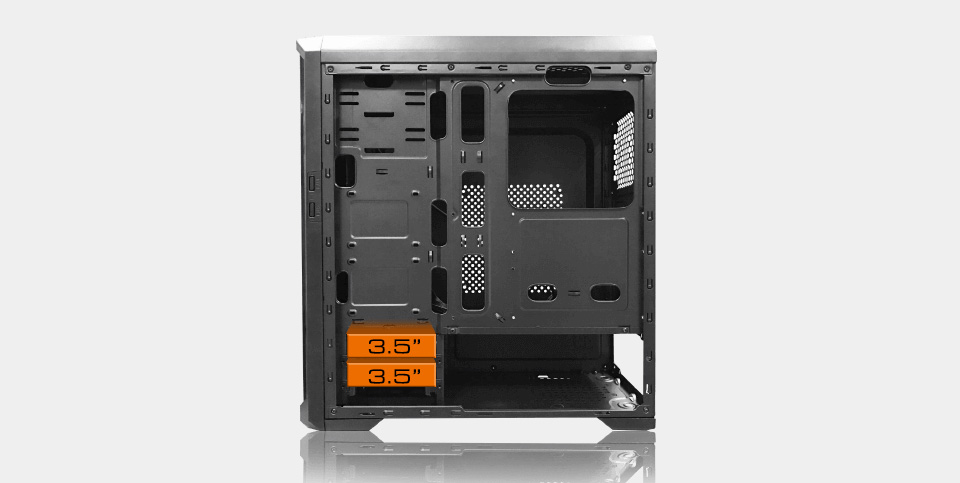

3.5” HDD x 2

Outstanding Airflow
Support for a 240mm front radiator and five fans make good cooling for high-end components possible in MX330, which is made even better by a convenient design that eases cleaning, with detachable dust filters on the front, top and bottom covers. The MX330-X takes this one step further, expanding the support up to six fans.


Minimalist Beauty

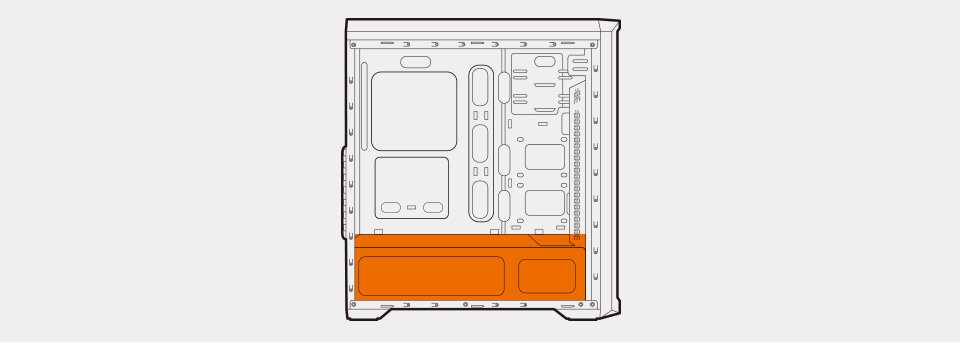

The case's PSU and 3.5” bay cover provide a clean view of your case and keep the airflow strong.

Specifications


Case Form Factor Mid tower
DImensions (W x H x D) 195 x 473 x 427mm
Motherboard Support Mini-ITX/Micro ATX/ATX
5.25" Drive Bay 1
3.5" Drive Bay 2
2.5" Drive Bay 2+2 (converted from 3.5" drive bays)
I/O Panel USB3.0 x 1/USB2.0 x 1/Mic x 1/Audio x 1
Maximum Number of Fans 6
Cooling System Front - 120mm Fan x 2
Top - 120mm Fan 2
Rear - 120mm (pre-installed)
Water Cooling Support Front - 240mm
Top - 120mm
Rear - 120mm
Fan Pre-Installed Rear - 120mm
Cable Management Yes
Expansion Slots 7
Max. Graphics Card Length 350mm
Max. CPU Cooler Height 155mm
Transparent Side Panel None
PSU Standard ATX PS2
Max. PSU Length 200mm

Power Supply

Model XTC500
AC Input 200-240V~50Hz/5A
DC Output +3.3V, +5V, +12V, -12V, +5Vsb, Total
16A, 18A, 38A, 0.3A, 2.5A, Total
110W, 456W, 0.3A, 2.5A, 500
Backed by a 1 year Cougar warranty.
