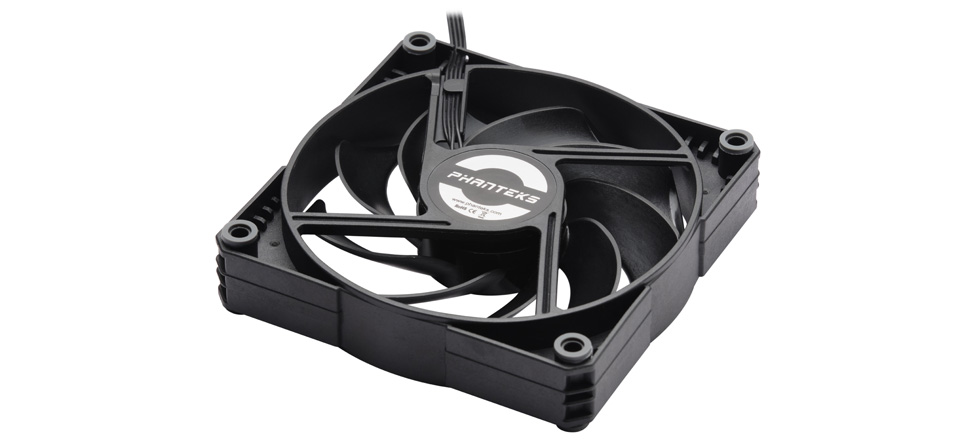

Phanteks SK 120mm PWM Fan

PH-F120SK_BBK_PWM
The Phanteks SK 120mm PWM Fan features a nine-blade design that provides high airflow cooling, built-in PWM capabilities to control the speed, unique rigid frame design to further reduce vibrations and noise, equipped with a silent sleeve bearing, and includes rubber dampeners.

Features



The SK PWM fans from Phanteks provide a high airflow cooling solution with the nine-bladed design. The SK fans are known from the award-winning Eclipse Series chassis such as the P400A and its cooling performance. The built-in PWM capabilities help precisely control the speed to offer higher airflow or a quiet cooling solution when needed. The included rubber dampeners and the unique rigid frame design further reduce vibrations and noise.

The SK PWM fans are the perfect way to further increase the cooling performance of any computer chassis.


SK PWM Fan at a glance

  • The SK fans are high airflow focused fans, thanks to their 9-bladed design. Perfectly suited to be used as case fans.

  • With PWM (Pulse-Width Modulation) capabilities built in, the SK fan offers precise speed control for optimized fan curves.

  • Vibrations and noise are reduced with the included rubber dampeners and the unique rigid frame design.

  • The SK fans are equipped with a silent sleeve bearing, “Rifle Bearing”. Combined with a rigid frame and included Rubber Dampeners, the SK fans can operate in silence while providing optimized performance.

Specifications


Fan Dimension (WxHxD) 120 mm x 120 mm x 25 mm / 4.72 in x 4.72 in x 0.98 in
Bearing Type Rifle bearing
Blade Geometry Nine Blades Design (black)
Rated Voltage DC 12V
Operating Voltage Range 4 ~13V
PWM Yes
Rated Current (Ampere) 100% 0.15A ±0.02
Locked Curent Brake Protection
Power Consumption 2.64W +10% Max
Speed 500 ~1500 +5 /-10% RPM
Max. Airflow 50 CFM (ft3/min)
Max. Air Pressure 0.96 mm H2O
Noise Level 27 dB(A)
Fan Connector 4 Pin PWM
Cable Length 550 mm / 21.65 in
MTBF 40.000 / hrs
Net Weight 134.2 g
Package Dimension 173 x 123 x 27 mm / 6.8 x 4.84 x 1.06 in
Gross Weight 168.8 g
Warranty 2 years
Backed by a 2 year Phanteks warranty.
