SilverStone ECU05 USB 3.1 PCI-E Controller Card
SST-ECU05 | SilverStoneThis product has been discontinued

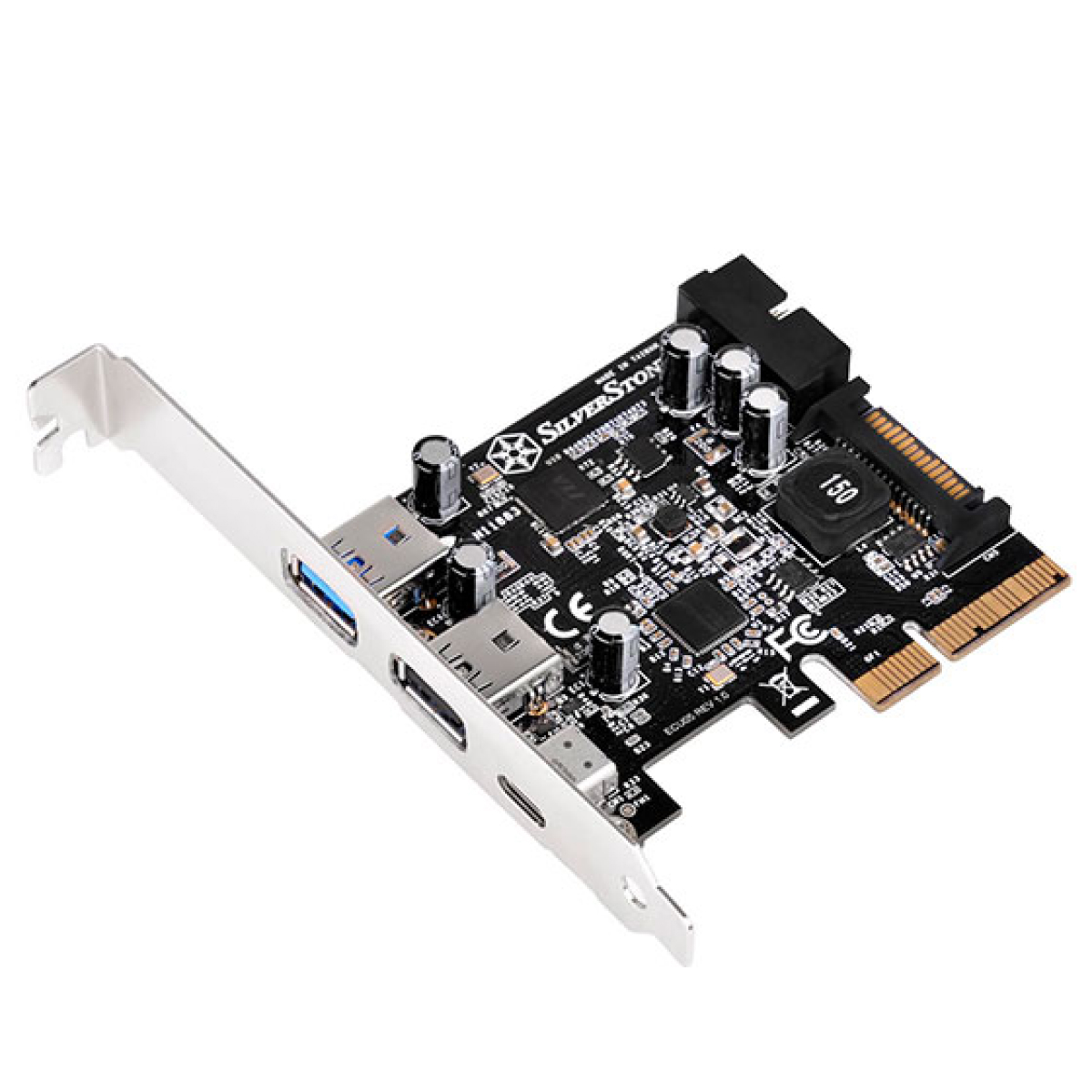

The SilverStone SST-ECU05 is a PCI-E 2.0 x2 expansion card with reversible USB 3.1 Type-C and USB 3.0 ports. Its single USB 3.1 Type-C port is capable of fully utilising the PCI-E 2.0 x2 slot for up to 10Gbps bandwidth. ECU05 also has two additional external USB 3.0 Type-A ports and an internal 19pin USB 3.0 connector to provide your system with five total added USB ports. For fast charging, one of the Type-A ports (black) meets USB Battery Charging (BC) 1.2 standards to deliver quick and safe charging to your mobile devices. Finally, the ECU05 supports UASP (USB Attached SCSI Protocol) for enhanced performance, so operating systems with XHCI (eXtensible Host Controller Interface) can easily detect and install ECU05 without the need for any drivers.
Features
ECU05
- Includes SuperSpeed USB 3.1 external USB Type-C connector
- Includes USB 3.0 internal 19pin connector and two external USB Type-A connectors
- Dedicated fast charging port, compliant with USB Battery Charging (BC) 1.2
- Support PCI-E 2.0 x2 with throughput up to 10 GT/s
- Compliant with extensible Host Controller Interface (XHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0
- Includes optional low profile slot cover for supporting low profile cases
Specifications
| Model Number | SST-ECU05 |
| Host Interface | Low profile - PCI-E 2.0 x 2 (10 GT/s) |
| USB Ports | USB 3.1 Type-C x 1, DFP with Rp=10 KΩ and up to 5 V 3 A USB 3.0 Type-A x 1 USB 3.0 Type-A with charging downstream port x 1, up to 5 V 1.5A Internal 19-pin connector x 1, for up to two USB 3.0 ports |
| USB 3.1 Controller | ASMedia ASM1142 |
| USB 3.0 Controller | VIA Lab VL812 |
| Transmitting Speed | USB 3.1 Gen 2.0 (10 Gbps), USB 3.1 Gen 1.0 / USB 3.0 (5 Gbps), USB 2.0 (480 Mbps), USB 1.1 (12 Mbps) |
| Power Requirement | 5 V via SATA 15-pin power connector |
| Power Management | Support USB 3.1 / USB 3.0 and USB 2.0 link power management |
| Current Protection | Support over current detection and protection |
| Operating System Support | Windows 7 (32bit / 64bit) (If your OS version is Windows 7 or earlier, please install driver (available from SilverStone website) prior to using the ECU05.), 8 / 8.1 / 10 (32bit / 64bit) (Windows 8 or 8.1, 10 supports ECU05 automatically so you do not need to install additional driver for it.), Ubuntu / Linux / Mac OS (User should check for XHCI function in Ubuntu/Linux or Mac OS, if computer system supports XHCI function then it can support ECU05 automatically without additional driver installation.) |
| Note | If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognised, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards. |
Backed by a 1 year SilverStone warranty.
